Repair Procedures: Replacement: RH
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat assembly (RH).
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear back armrest.
(Refer to Rear Seat - "REAR BACK ARMREST ")

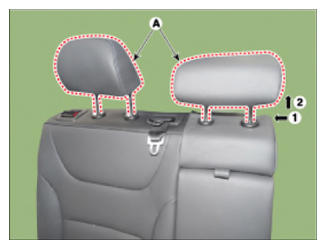

- Push the lock pins, and remove the rear seat headrest (A).

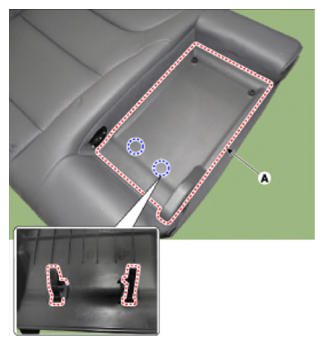

- Remove the rear seat armrest board (A).

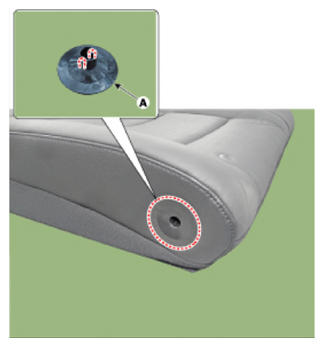

- Using a screwdriver or remover, remove the cap (A).

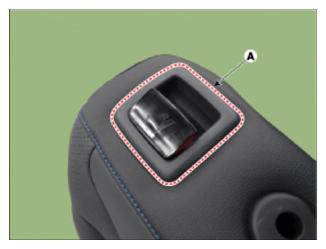

- Using a screwdriver or remover, remove the rear seat folding bezel (A).

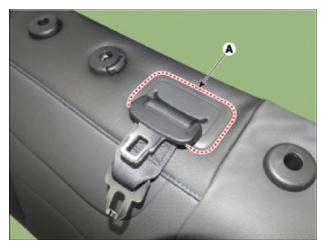

- Using a screwdriver or remover, remove the rear seat belt center cover (A).
- Using a screwdriver or remover, remove the Teddy anchor garnish (A).

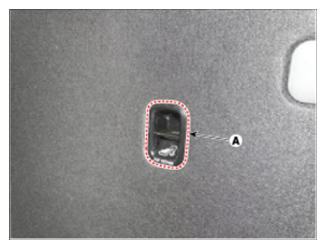

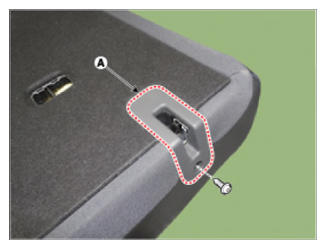

- After loosening the mounting screws, remove the rear seat back latch cover (A).

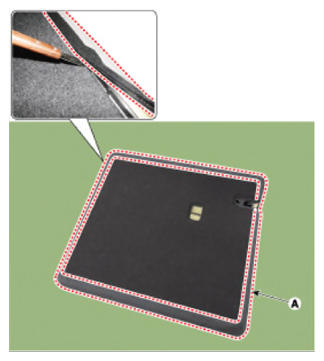

- Using a screwdriver or remover, remove the rear seat back cover (A).

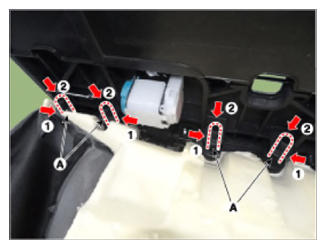

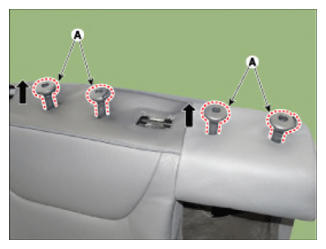

- Pull out the rear seat headrest guides (A) while pinching both sides of the lower part of the guides, and remove them.

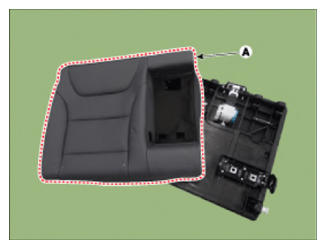

- Remove the rear seat back cover assembly (A) from the rear seat back frame.

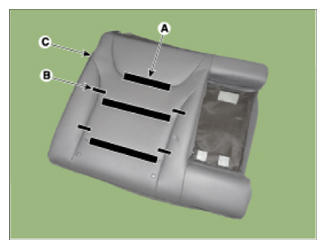

- After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).
- To install, reverse the removal procedure.
Information
- Make sure that the connectors are connected completely.
- Replace any damaged clips (or pin-type retainers).

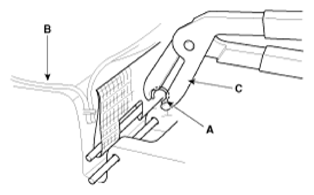

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
