Rear seat cushion assembly

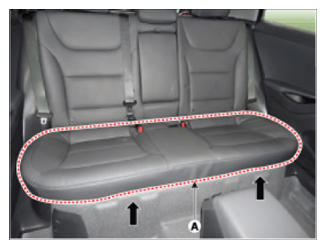

  1. Loosen the mounting bolts, remove the rear seat cushion assembly (A).
    G13851072Courtesy of HYUNDAI MOTOR AMERICA

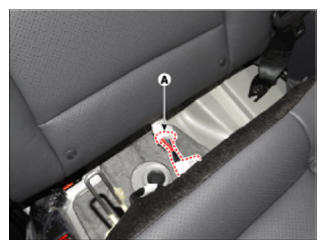

  2. Disconnect the rear seat cushion extension connector (A).
    G13851073Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.
