Rear seat back assembly

  1. Remove the rear seat cushion assembly.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

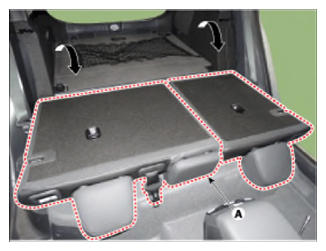

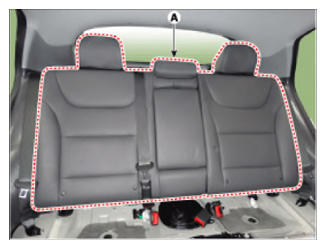

  2. Fold the rear seat back assembly (A) by pulling the folding lever in the direction of the arrow.
    G13851074Courtesy of HYUNDAI MOTOR AMERICA
    G13851075Courtesy of HYUNDAI MOTOR AMERICA

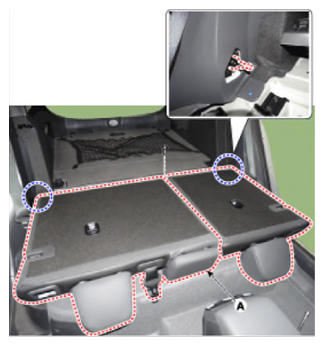

  3. After loosening the mounting bolts, remove the rear seat assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G13851076Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse the removal procedure.
