Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the rear seat back assembly (LH).

   (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

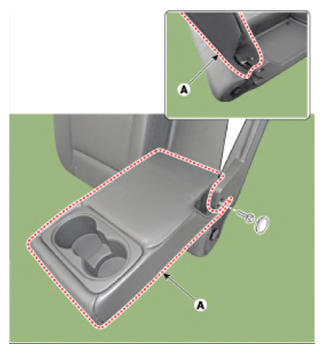

2. Separate the rear back armrest (A) after removing the cap and then loosening the bolt.

   Courtesy of HYUNDAI MOTOR AMERICA

3. To install, reverse the removal procedure.
