Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

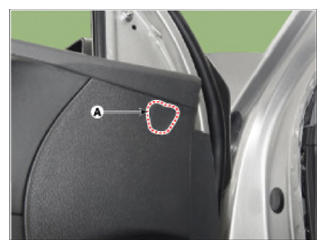

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

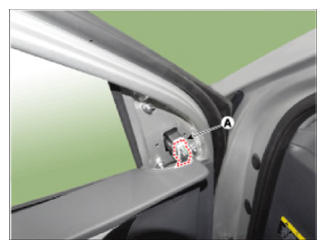

Disconnect the outside rear view mirror connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

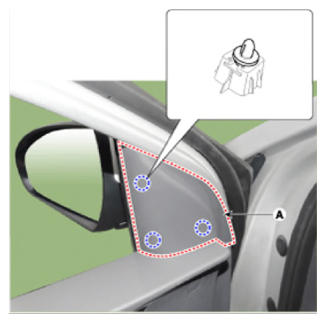

Using a screwdriver or remover, remove the rear view mirror cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

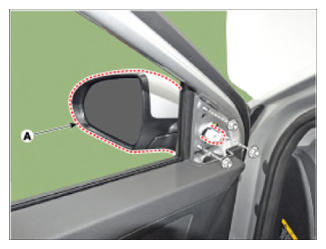

After loosening the mounting nuts, remove the outside rear view mirror (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
