Repair Procedures: Removal

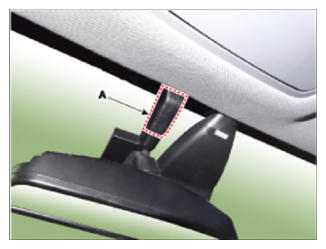

  1. Remove the mirror wiring cover (A).
    G13851654Courtesy of HYUNDAI MOTOR AMERICA

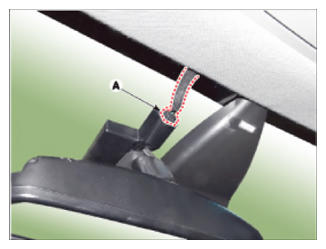

  2. Remove the mirror connector (A).
    G13851655Courtesy of HYUNDAI MOTOR AMERICA

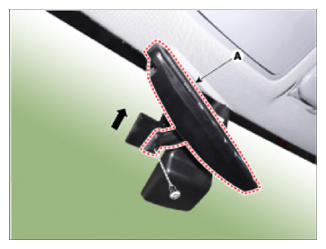

  3. Remove the mirror (A) pulling up in the arrow direction.
    NOTE:
    • Make sure not to damage the mounting bracket when removing the mirror.
    G13851656Courtesy of HYUNDAI MOTOR AMERICA
