Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Slightly remove the rear door weatherstrip.
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")

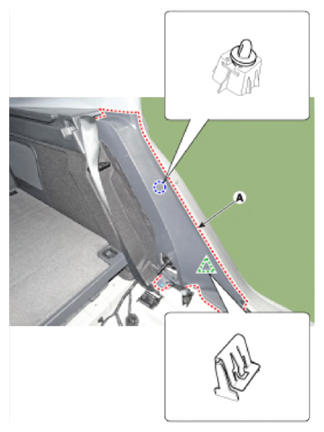

- Using a screwdriver or remover, remove the rear wheel house trim (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
