Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat assembly
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Carefully remove the rear door body side weatherstrip.
- Carefully remove the tailgate weatherstrip.
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
- Remove the rear transverse trim.
(Refer to Interior Trim - "REAR TRANSVERSE TRIM ")
- Remove the rear wheel house trim.
(Refer to Interior Trim - "REAR WHEEL HOUSE TRIM ")

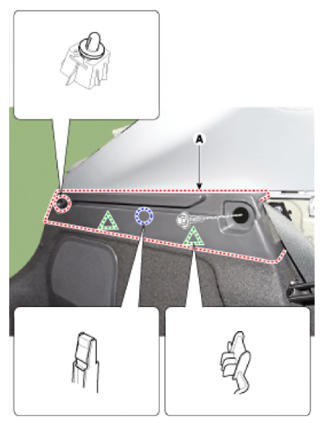

- Loosen the mounting bolts, remove the shift side trim covering (A).

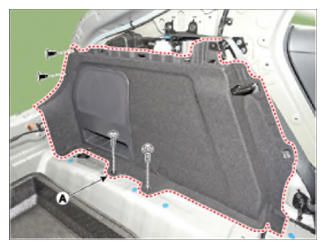

- After loosening the mounting clips, bolts and screws, remove the luggage side trim (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
