Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front pillar trim

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  4. Remove the center fascia panel.

    (Refer to Crash Pad - "Cluster Fascia Panel ")

  5. Remove the AVN head unit.

    (Refer to Body Electrical System - "AUDIO VIDEO NAVIGATION (AVN) HEAD UNIT ")

  6. Remove the crash pad garnish.

    (Refer to Crash Pad - "CRASH PAD GARNISH ")

  7. Remove the glove box upper cover assembly.

    (Refer to Crash Pad - "GLOVE BOX UPPER COVER ASSEMBLY ")

  8. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  9. Remove the steering column shroud lower panel.

    (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

  10. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  11. Remove the instrument cluster.

    (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

  12. Using a remover, remove the photo sensor (A) and separate the photo sensor connector (B).
    G13850915Courtesy of HYUNDAI MOTOR AMERICA
  13. Loosen the mounting screws and remove the center duct (A).
    G13850916Courtesy of HYUNDAI MOTOR AMERICA
  14. Press the lock pin and separate the hazard switch connector (A).
    G13850917Courtesy of HYUNDAI MOTOR AMERICA
  15. Loosen the mounting screws and remove the A/C & heater controller unit (A).
    G13850918Courtesy of HYUNDAI MOTOR AMERICA
  16. Press the lock pin and separate the A/C & heater controller connectors (A).
    G13850919Courtesy of HYUNDAI MOTOR AMERICA
  17. Loosen the mounting screws and remove the fuel panel assembly (A).
    G13850920Courtesy of HYUNDAI MOTOR AMERICA
  18. Press the lock pin and separate the fuel switch connector (A).
    G13850921Courtesy of HYUNDAI MOTOR AMERICA
  19. Press the lock pin and separate the center speaker connector (A).
    G13850922Courtesy of HYUNDAI MOTOR AMERICA
  20. Loosen the passenger airbag mounting bolts (A).
    G13850923Courtesy of HYUNDAI MOTOR AMERICA

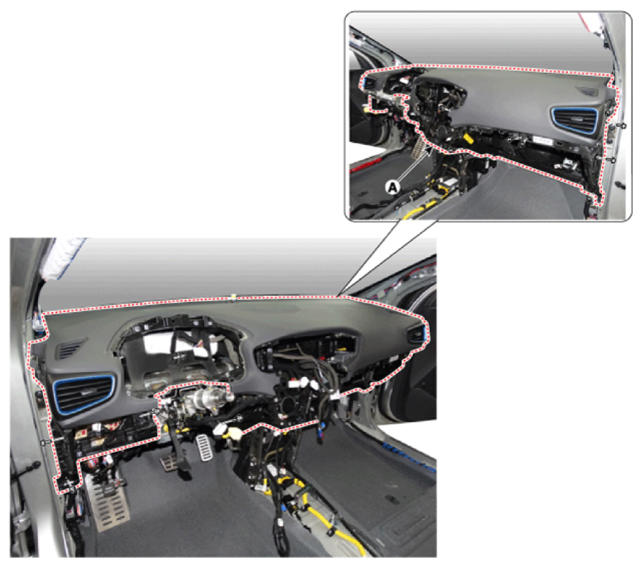

  21. Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).
    G13850924Courtesy of HYUNDAI MOTOR AMERICA
  22. Press the lock pin and separate the passenger's airbag connectors (A).
    G13850925Courtesy of HYUNDAI MOTOR AMERICA
  23. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
