Crash Pad Garnish (RH)

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

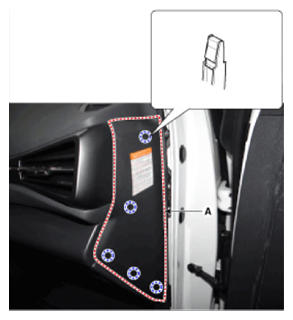

Using a remover and remove the crash pad side cover [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screw and remove the crash pad garnish [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin-type retainers).
