Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Engine "ON".
  3. Confirm the AFLS ECU type and then download to correct parameter.

    *REFERENCE*

    Perform the initializing after replace "AFLS ECU"

    *Vehicle condition

    1. Park at lever land
    2. Vehicle speed < 5 km/h
    3. IG ON or Engine on
    4. Connect GDS
    5. CAN communication is normal status
    6. Battery voltage > 10.5V
    7. Autolight Switch Off (AFLS Switch Off)
    8. Headlamp Low Beam S/W ON

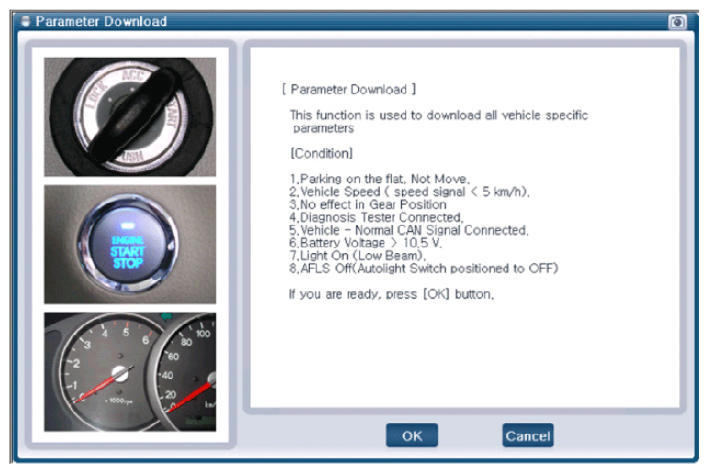

      1. Parameter Download
        G13839197Courtesy of HYUNDAI MOTOR AMERICA
