Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.

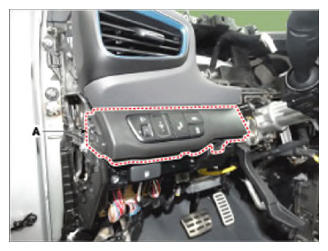

  2. Remove the crash pad lower panel (A).

    (Refer to Body - "CRASH PAD LOWER PANEL ")

    G13851753Courtesy of HYUNDAI MOTOR AMERICA

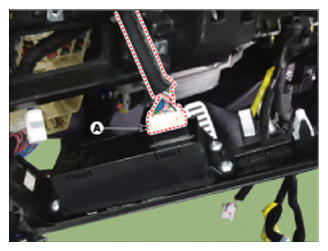

  3. Disconnect the rheostat switch connector (A).
    G13851754Courtesy of HYUNDAI MOTOR AMERICA

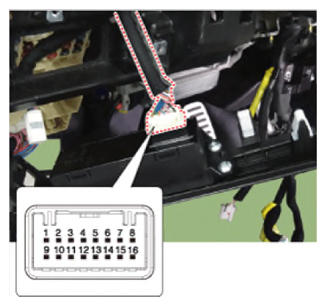

  4. Operate the BSD switch, then check for continuity between terminals of BSD switch connector.
    G13851755Courtesy of HYUNDAI MOTOR AMERICA
    G13851756Courtesy of HYUNDAI MOTOR AMERICA
