Monitor DTC Status
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON"

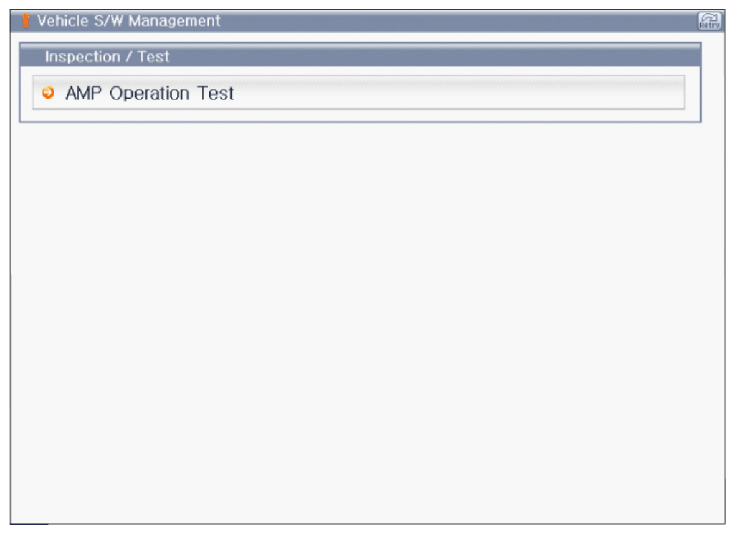

- Select "AMP" system and perform "Vehicle S/W Management" with GDS.
- Perform

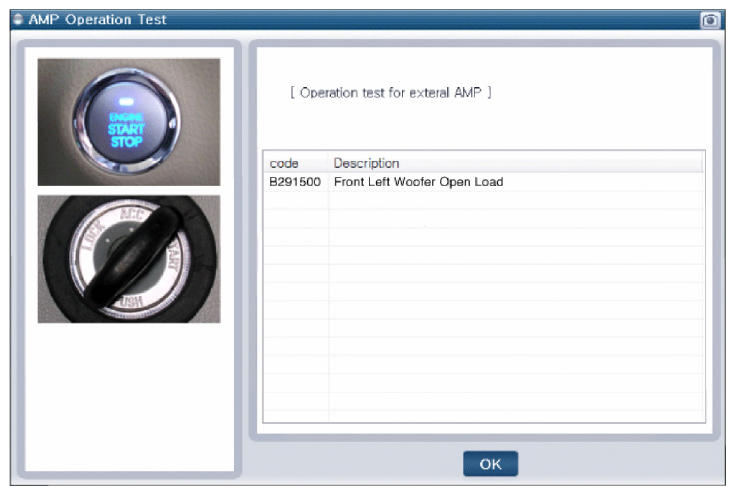

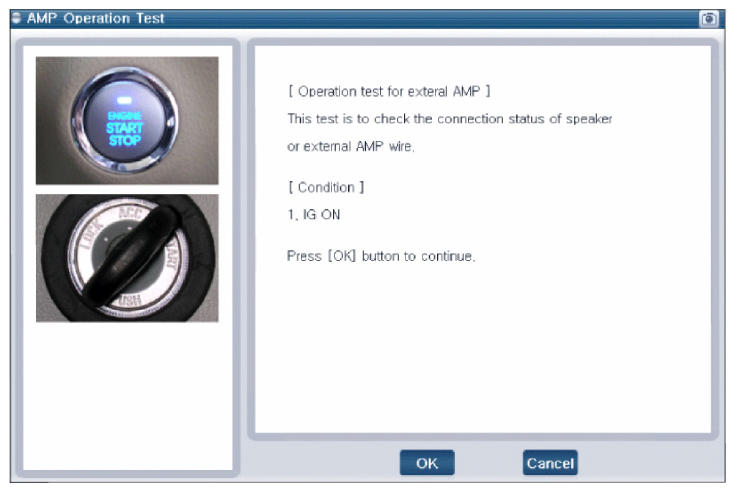

"AMP Operation Test" of "Vehicle S/W Management".
- Is the DTC set as above?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
