Monitor DTC Status
- Vehicle parked & Ignition switch 'ON'.
- Connect GDS and select "DTC Analysis" mode.

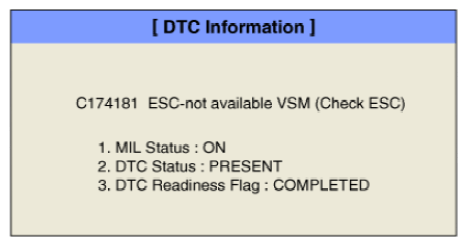

- Click "DTC Status" on the "Diagnostic Trouble Codes (DTC)" menu bar to see DTC's information.
- Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
- Read "DTC Status" parameter.
- Is parameter displayed "Present fault"?
YES
- Select ESP(ESC/IBAU) system and check DTCs related with AEB(SCC) system. If DTC is exist, repair as necessary, and then confirm clear.
- Repair or replace as necessary, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- This fault was repaired and SCC(AEB) Module memory was not cleared. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
