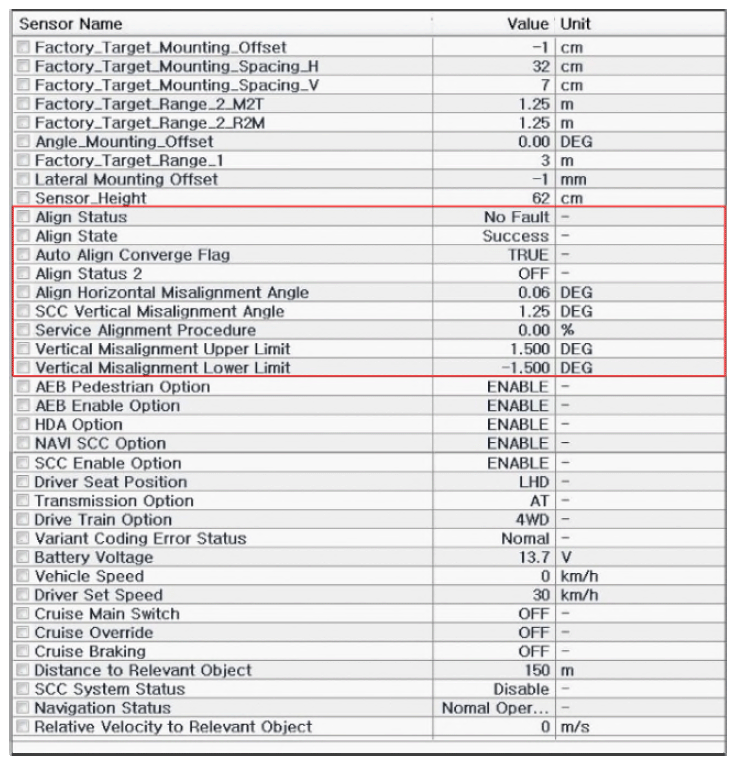

Monitor GDS Data

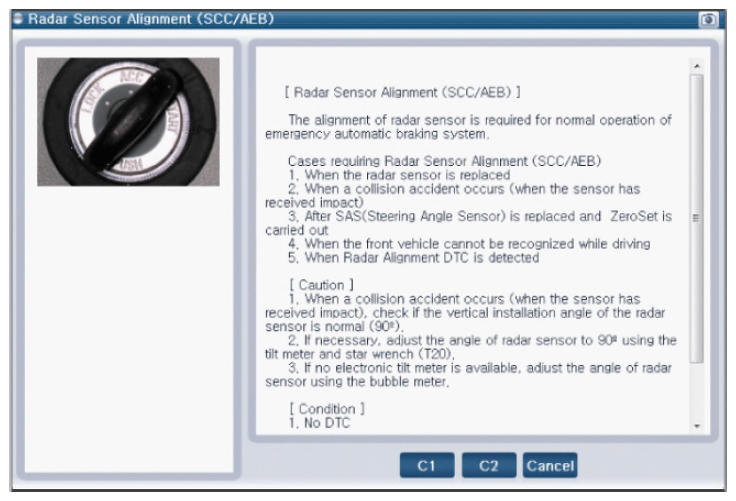

Courtesy of HYUNDAI MOTOR AMERICA

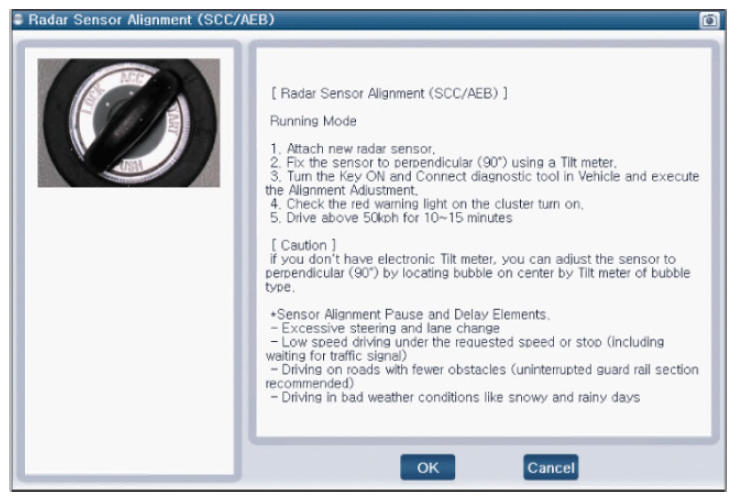

Courtesy of HYUNDAI MOTOR AMERICA

Specification of Alight Status:

1. Not Executive: Sensor alignment not completed - Perform the sensor alignment.
2. Success: Sensor alignment completed success.
3. Time out: Sensor alignment failed. Time exceeded - Perform the sensor alignment again.
4. Unknown: Sensor alignment failed. The cause unknown - Check the sensor surface status/sensor temperature/voltage status/abnormality in CAN communication.
5. Target Not Found: Sensor alignment failed. Target unrecognized - Check the Target position.
6. Horizontal Multiple Target Found: Sensor alignment failed. Multiple targets recognized (horizontal) - Check for the existence of other target in the horizontal direction.
7. Incorrect Target Range: Sensor alignment failed. Distance error between the sensor and target - Check the distance between the sensor and target.
8. Target Angle Deviation: Sensor alignment failed. Target shake - Check the installation status of target.
9. Horizontal Bad Angle: Sensor alignment failed. Calibration range exceeded (horizontal) - Check the installation status of SCC Radar.
10. Vertical Bad Angle: Sensor alignment failed. Calibration range exceeded (vertical) - Check the installation status of SCC Radar.
11. Market Code Not Correct: Sensor alignment failed. Variant coding input error - Check the local specifications for the relevant vehicle type.
12. Hardware Failure: Sensor alignment failed. Sensor failure - Need to replace the SCC Radar.
13. Vertical Multiple Target Found: Sensor alignment failed. Multiple targets recognized (vertical) - Check for the existence of the target in the vertical direction.

YES

• Repair according to the detailed description of failed alignment.
• Repair or replace as necessary, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

• Repair or replace as necessary, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
