Description & Operation: Operation
* The time indicated will be changed according to vehicle speeds.

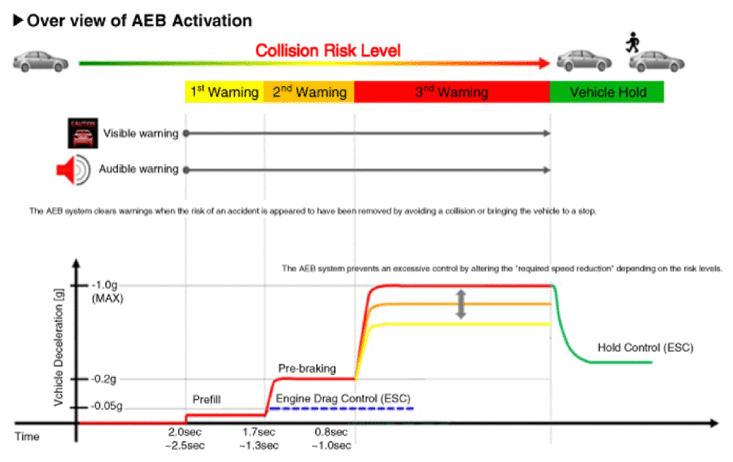

- Step 1: Issue a visual (display) and vocal alarm when a danger is detected.
- Step 2: Reduce engine torque and activates AEB when there is a high chance of collision.
- Step 3: Activate emergency brake when a collision is imminent.
- After stopping the vehicle: Maintain the braking control for a certain time and then release it.
Information
- Braking power is adjusted depending on the risk levels of collision, but it is released immediately when it detects the driver's action to avoid a collision.
- When it exceeded the maximum operation speed.
- When it detected driver's action to avoid a collision such as sudden steering changes.
- When the shift lever is in R or P
- When you pressed the accelerator pedal half way.
CAUTION:
- When you drive at 80 km/h or faster, the system does not go to step 3 of emergency braking.
- Full auto braking is not available.
- While driving at 80 km/h or slower on a straight or slightly curved road, the system performs three steps after issuing a warning.
- But a collision may occur at 30 km/h or faster depending on the road conditions.
- While driving at 80 km/h or slower on a straight or slightly curved road, after a visual and vocal warning, AEB is activated to reduce the vehicle speed.
- At 80 km/h or faster, it's impossible to avoid a collision. Offset should be less than 50%.
- AEB does not work on the vehicles backing up or resisting.
- At 70 km/h or faster, it does not respond to pedestrians.
Information
Offset: Rate of non-overlapping on the line between the front driving car and my car
