Components & Components Location: Components

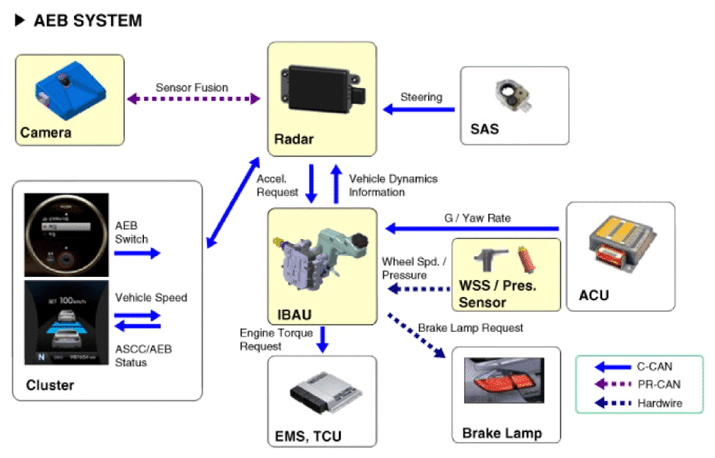

The following is the configuration of the AEB system.
- Detection device (radar and camera) that can recognize potential obstacles in the front.
- Human-Machine Interface (HMI) to warn driver or change settings.
- Braking system to automatically brake the car
AEB, contrary to SCC (Smart Cruise Control), has to work on a stationary car so the system uses the Fusion Target system to combine radar with camera.
