Wheel Alignment

Item		Specification
Item		Front	Rear
Toe-in	Total	0.1° ± 0.2°	0.26° ± 0.3°
Toe-in	Individual	0.05° ± 0.1°	0.13° ± 0.15°
Camber angle		-0.56° ± 0.5°	-1.2° ± 0.5°
Caster angle		4.55° ± 0.5°	-
King - pin angle		14.5° ± 0.5°	-
Ride height		383 mm ± 10 mm	383 mm ± 10 mm

Information

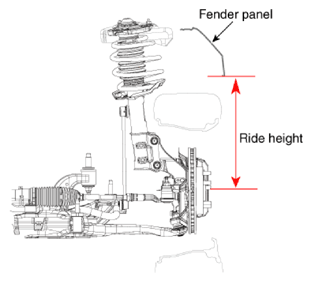

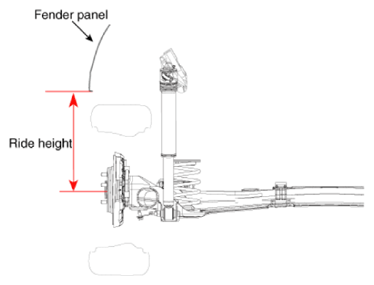

Front	Rear
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
