Rear Torsion Beam Axle Bush Replace

  1. Remove the rear torsion beam axle from the vehicle.

    (Refer to Rear Torsion Beam Axle - "REMOVAL ")

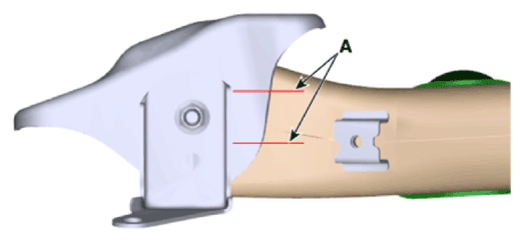

  2. Mark (A) between the rear torsional beam chassis bracket and the torsional beam axle.
    G14607894Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the rear torsion beam axle stay (A) after loosening the mounting bolt and nut.
    G14607895Courtesy of HYUNDAI MOTOR AMERICA

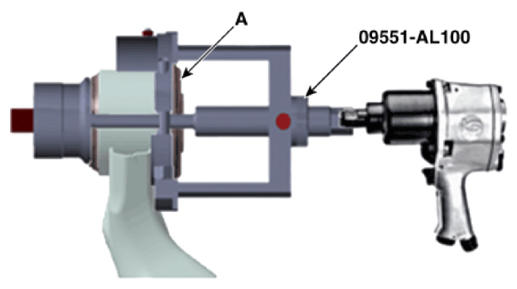

  4. Using the SST (09551-AL100), replace the bush (A).
    G14607896Courtesy of HYUNDAI MOTOR AMERICA

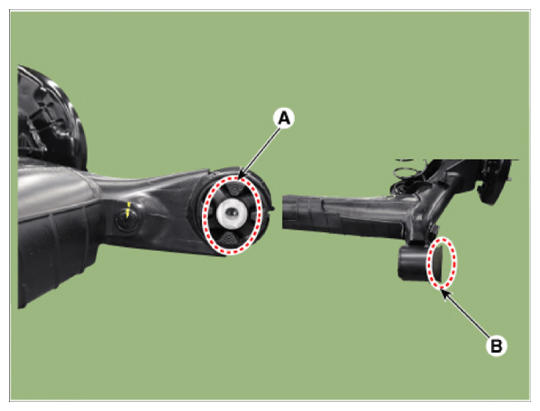

    CAUTION:
    • When press in the bush, press the same direction of the void (A) and the flange direction (B) before detaching.
    G14607897Courtesy of HYUNDAI MOTOR AMERICA

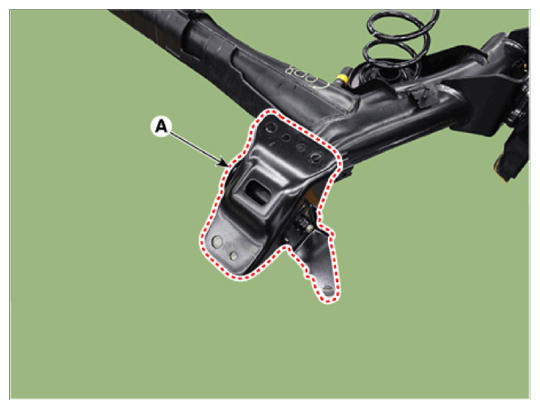

  5. Install the torsion beam axle stay (A) and tighten the bolt and nut to the specified torque.

    Tightening torque:

    68.6 N.m + 270° (7.0 kgf.m + 270°, 50.6 lb-ft + 270° lb-ft)

    NOTE:
    • Do not reuse removed bolt and nut.
    G14607898Courtesy of HYUNDAI MOTOR AMERICA

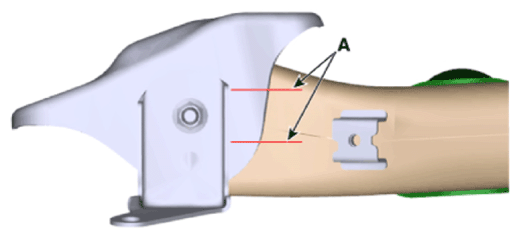

    CAUTION:
    • Before removing the torsion beam axle stay, attach the marking (A) to match.
      G14607899Courtesy of HYUNDAI MOTOR AMERICA
