Repair Procedures: Inspection: Notes

  1. Check the rubber parts for wear and deterioration.

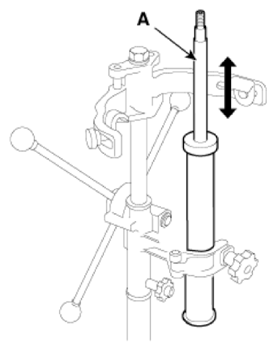

  2. Compress and extend the rear shock absorber rod (A) and check that there is no abnormal resistance or unusual sound during operation.
    G14607871Courtesy of HYUNDAI MOTOR AMERICA
