Repair Procedures: Disassembly

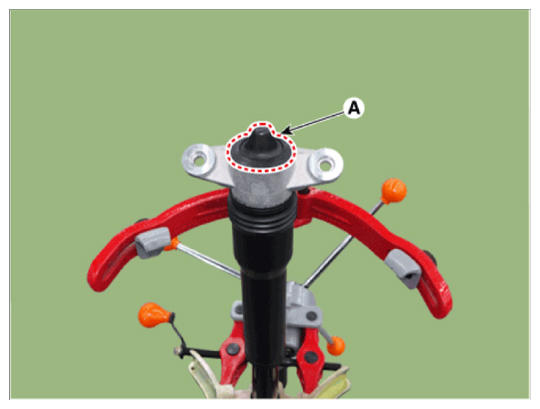

  1. Remove the insulator cap (A).
    G14607868Courtesy of HYUNDAI MOTOR AMERICA

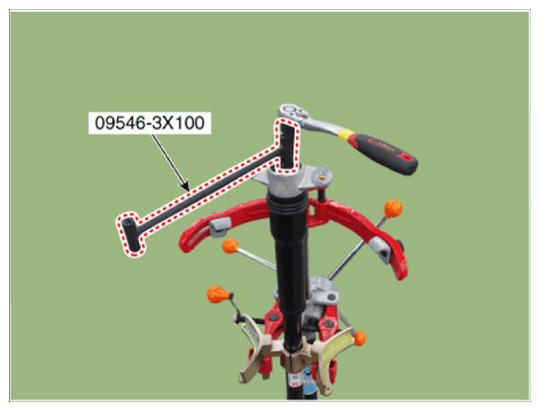

  2. Loosen the lock nut by using the SST (09456-3X100).
    G14607869Courtesy of HYUNDAI MOTOR AMERICA

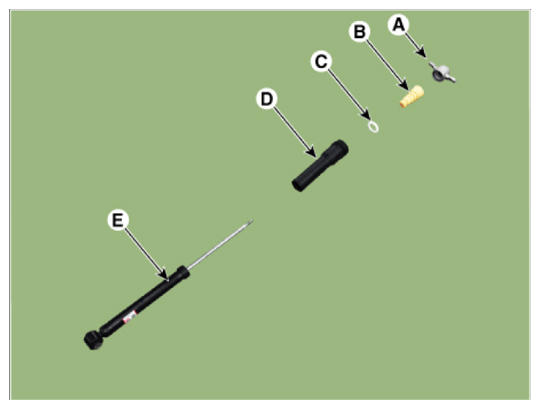

  3. Separate the insulator (A), bumper rubber (B), spacer (C), dust cover (D), shock absorber (E).
    G14607870Courtesy of HYUNDAI MOTOR AMERICA
