Repair Procedures: Removal
- Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

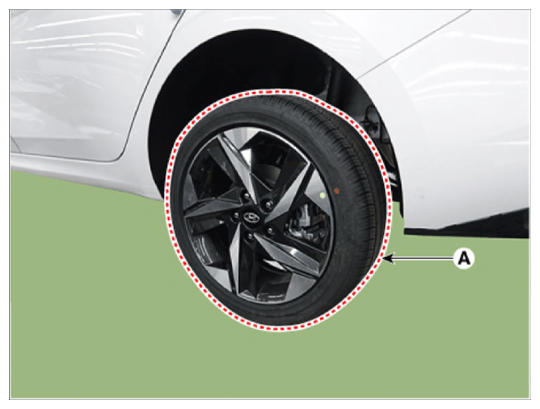

- Remove the rear wheel and tire (A) from the rear hub.
Tightening torque:
107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
- Remove the rear caliper.
(Refer to Brake System - "REAR DISC BRAKE ")

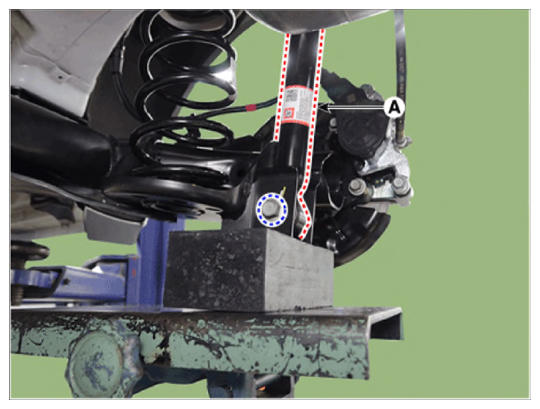

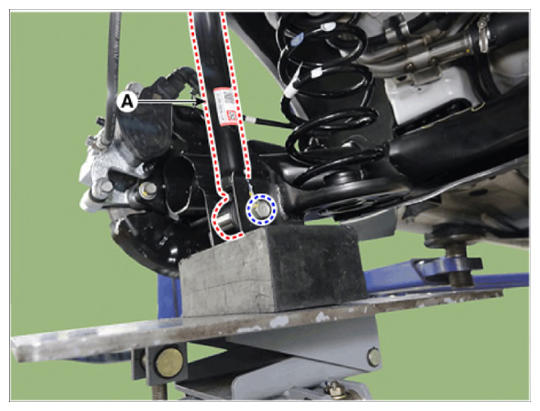

- Remove the rear shock absorber (A) from the torsion beam axle after loosening the mounting bolt.
Tightening torque:
98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)
NOTE:- Set up the jack under the torsion beam axle in order to remove it in no-load condition.
[LH]
[RH]

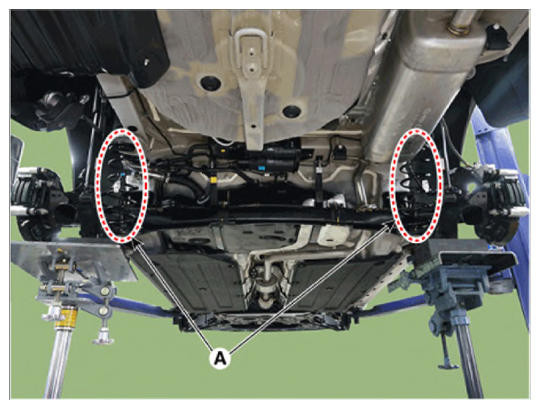

- Remove the coil spring (A).
Information
- Left/right sides Remove all the same.
