Monitor GDS Data

  1. Ignition switch OFF, connect GDS.
  2. Ignition switch ON and the engine OFF, select "Current Data" mode.
  3. Monitor the "Driver Pretensioner resistance" parameter on the GDS.

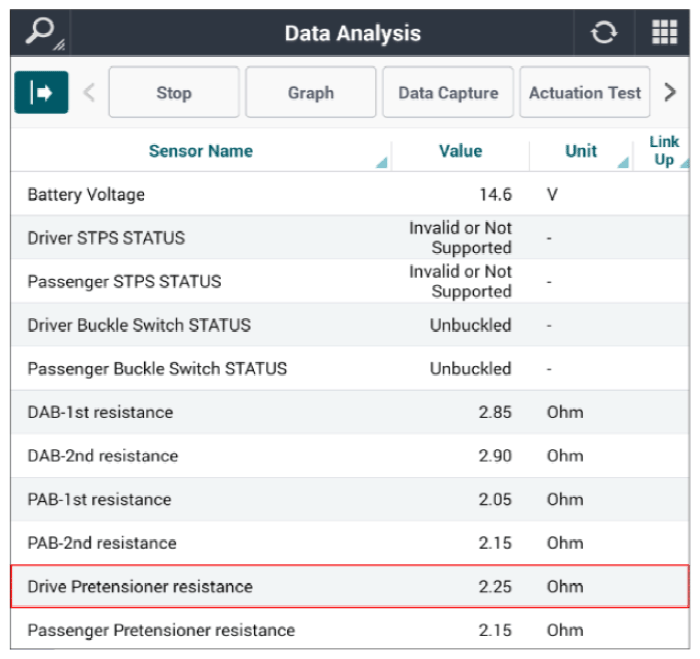

G14608122Courtesy of HYUNDAI MOTOR AMERICA

Reference  : Resistance of "Driver Pretensioner" is between 1.0Ω and 6.9Ω

Reference  : In a case of an open in the "Driver Pretensioner" circuit: FAIL

In a case of a short to battery in the "Driver Pretensioner" circuit: FAIL

In a case of a short to ground in the "Driver Pretensioner" circuit: FAIL
