Hyundai
>>
2021
>>
Elantra SE
>>
Repair and Diagnosis
>>
Restraints
>>
Air Bag, SRS
>>
Airbag System Diagnosis (Except HEV) (1 Of 3)
>>
DTC B1327-00: FIS (Front Impact Sensor)-Driver Short To Battery
>>
Troubleshooting
>>

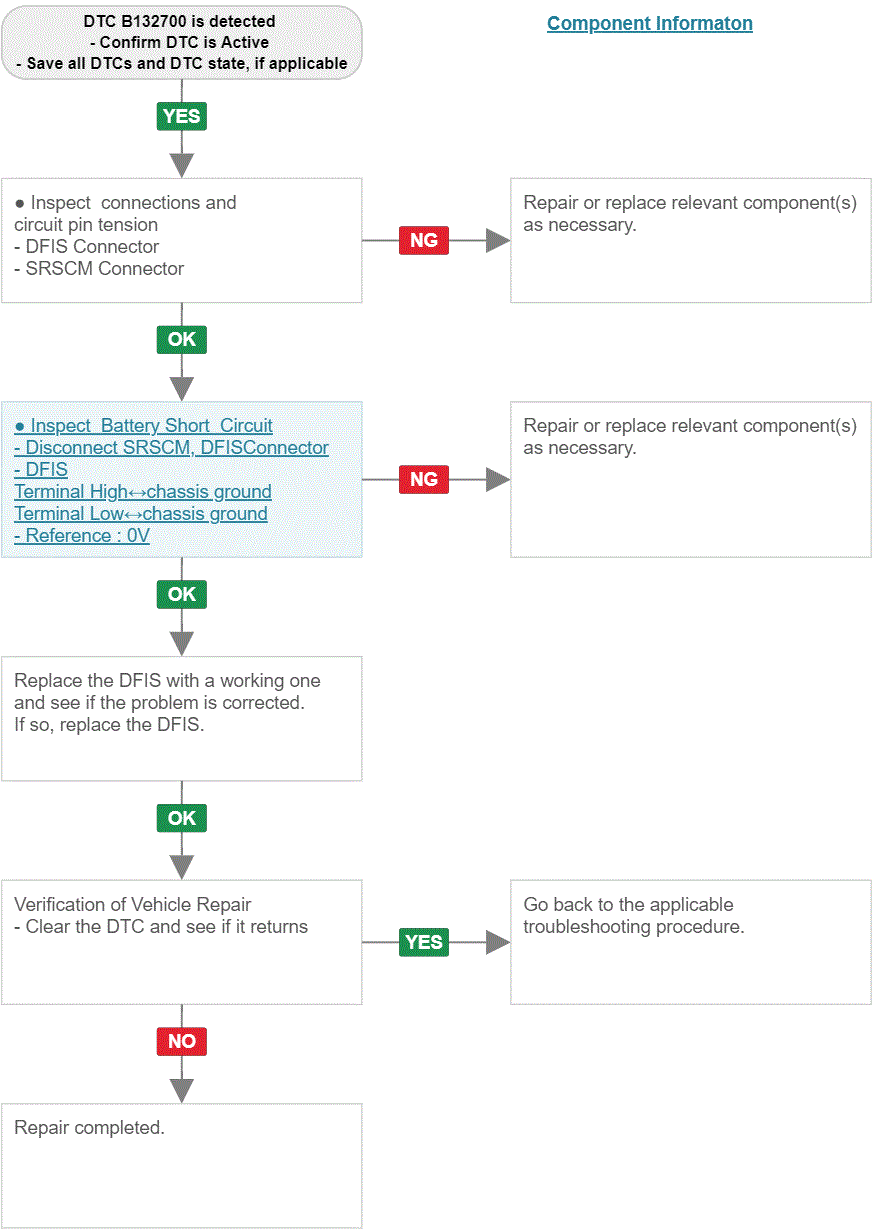

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
