Monitor GDS Data
- Ignition switch OFF, connect GDS.
- Ignition switch ON and the engine OFF, select "Current Data" mode.

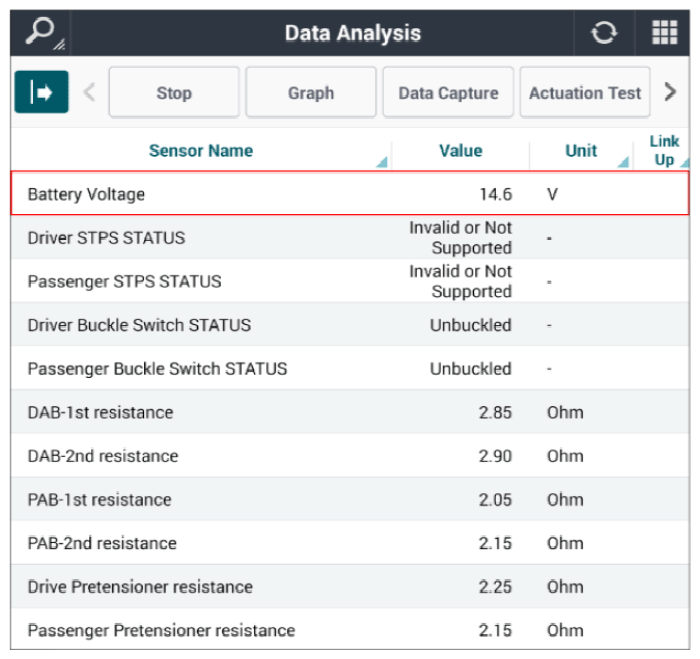

- Monitor the "Battery Voltage" parameter on the GDS.
 Courtesy of HYUNDAI MOTOR AMERICA
|
Reference
: Battery voltage is between 8 and 16V
