Section 36 (Dual Clutch Transmission Diagnosis - 1.6L (Except HEV) (3 Of 3))
>>
DTC U1100-87: High Speed CAN2 Lost Communication (EMS-DCT)
>>
Troubleshooting
>>

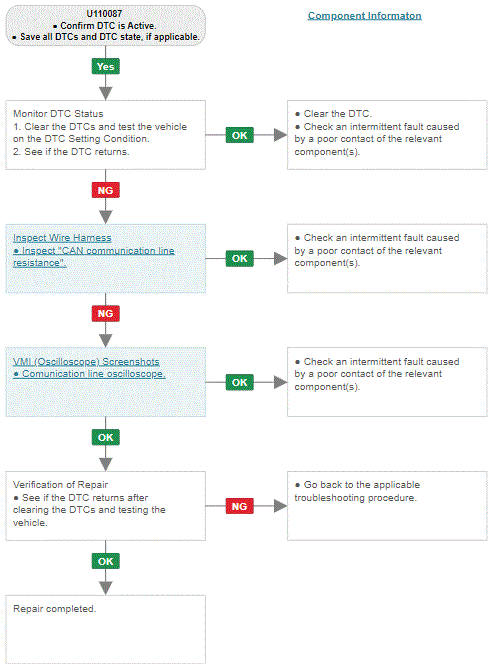

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
