Monitor GDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to Data Link Connector (DLC).
  2. Lift vehicle with suitable lift and Engine "ON".
  3. Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.
  4. Monitor selected parameters shown below in "Current Data" with GDS.

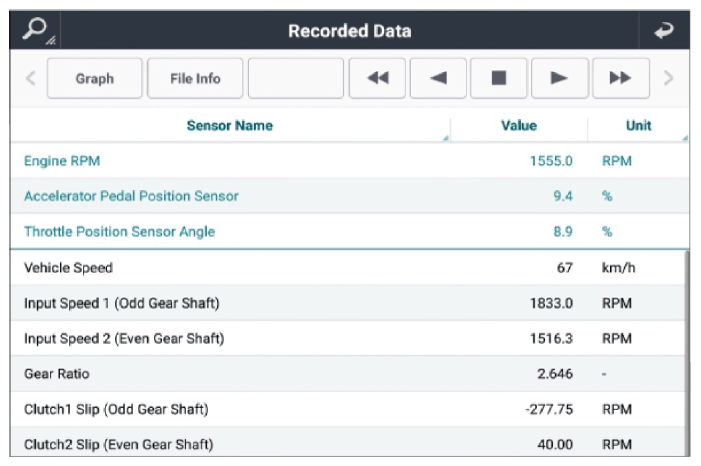

    Specification:  Refer to illustration below

    G14609670Courtesy of HYUNDAI MOTOR AMERICA
