Section 36 (Dual Clutch Transmission Diagnosis - 1.6L (Except HEV) (3 Of 3))
>>
DTC U0001-88: CAN Communication Bus Off
>>
Troubleshooting
>>

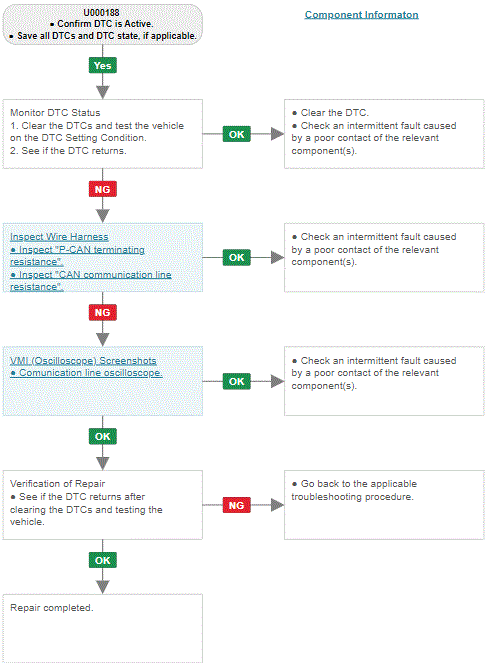

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
