Section 35 (Dual Clutch Transmission Diagnosis - 1.6L (Except HEV) (2 Of 3))
>>
DTC P0901-7F: Clutch 'A' Actuator Control Circuit Range/Performance
>>
Troubleshooting
>>
Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.

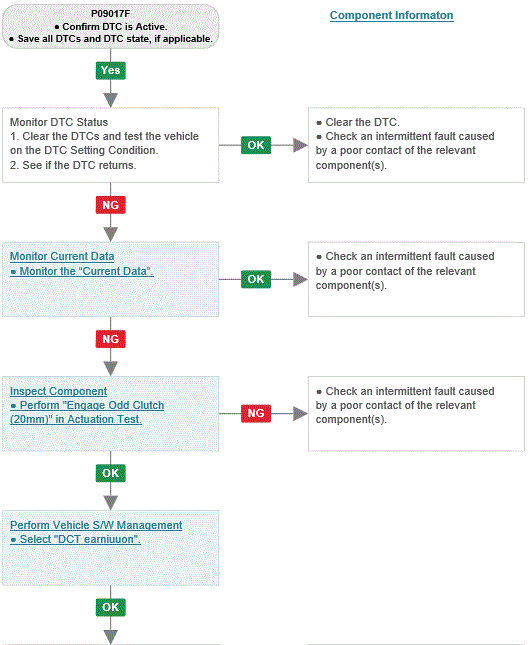

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
