Monitor GDS Data
WARNING: This page is about a different variant/trim than selected.
- Connect GDS to Data Link Connector (DLC).
- Ignition "ON".

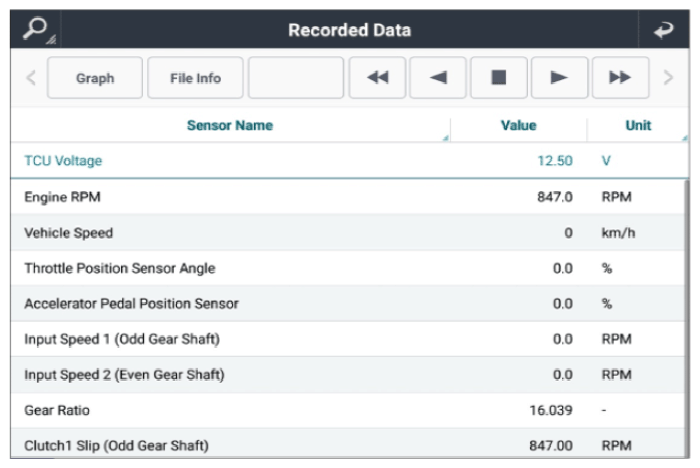

- Monitor "TCU Voltage" parameter in "Current Data" with GDS.
Specification: Refer to illustration below
- Is the value within specification?
YES
- This can be an intermittent fault caused by poor contact in the sensor's and/or control module's connector. Or, control module's memory was not cleared after repair. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage.
- Repair or replace the relevant component(s) as necessary, and go to "Verification of Vehicle Repair".
NO
- Go to next procedure.
