Section 34 (Dual Clutch Transmission Diagnosis - 1.6L (Except HEV) (1 Of 3))
>>
DTC P074A-71: Unable To Engage (Select) Gear 2
>>
Troubleshooting
>>

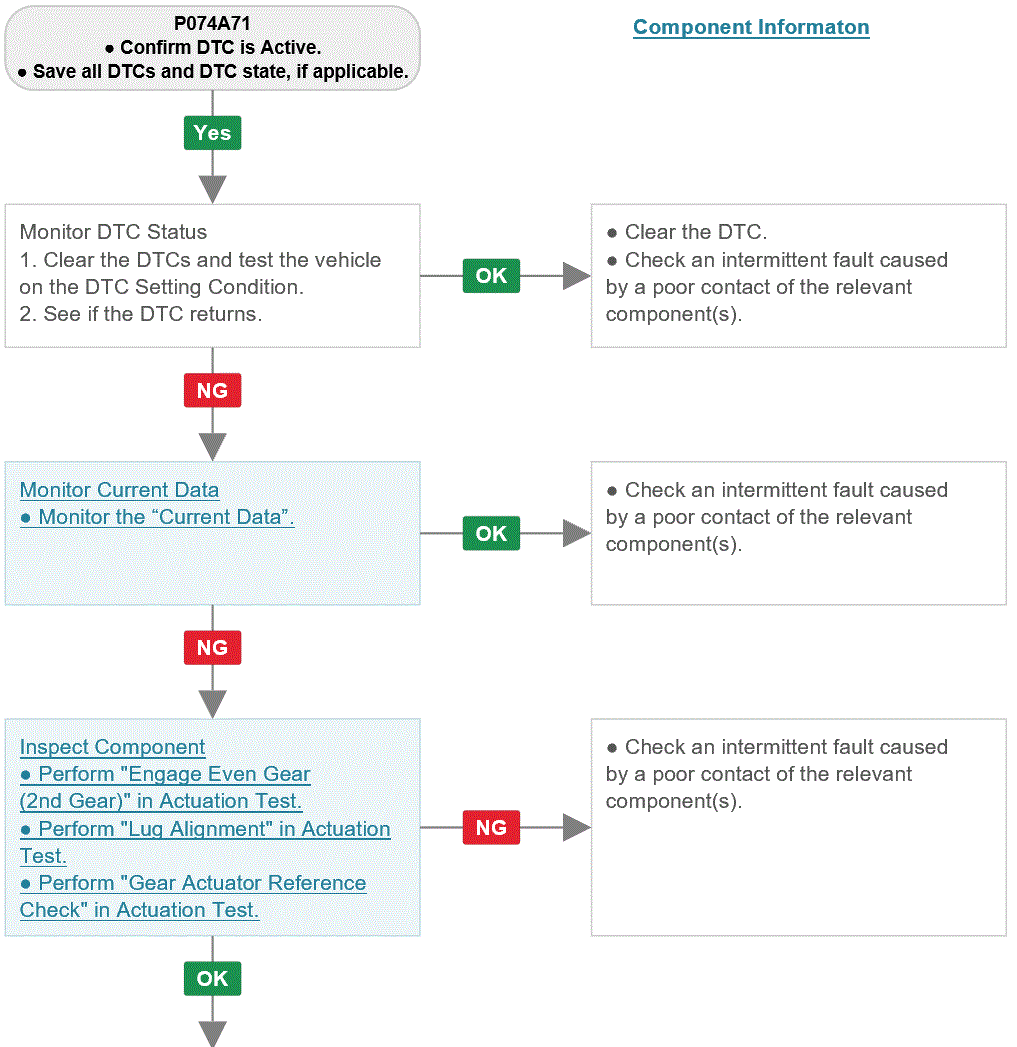

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
