Section 34 (Dual Clutch Transmission Diagnosis - 1.6L (Except HEV) (1 Of 3))
>>
DTC P0716-03: Input Speed Sensor 1 Circuit Range/Performance (Invalid Pulse Width)
>>
Troubleshooting
>>

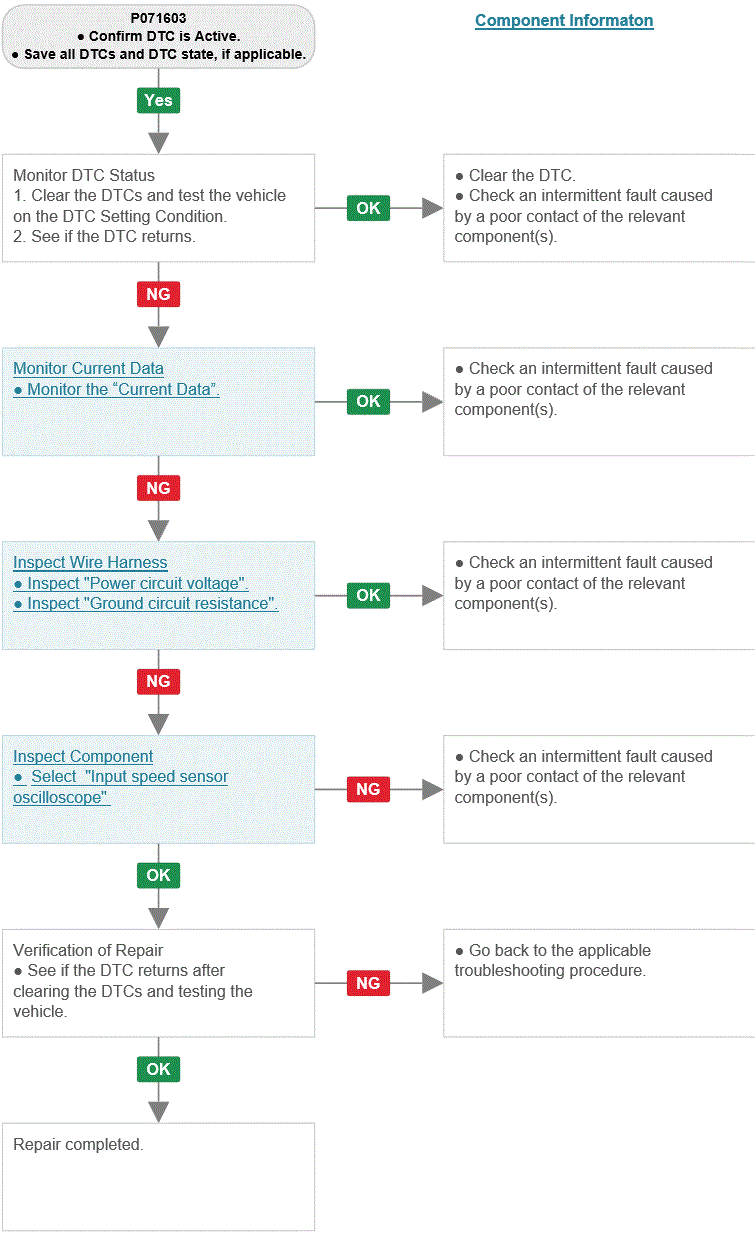

Diagnostic Flowchart
Diagnostic Flowchart
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
