Monitor GDS Data
WARNING: This page is about a different variant/trim than selected.
- Connect GDS to Data Link Connector (DLC).
- Engine "ON" and Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.
- Monitor "Input Speed 1, 2", "Shift Lever Switch", "Current Gear" and "Engine RPM" parameter in "Current Data" with GDS.

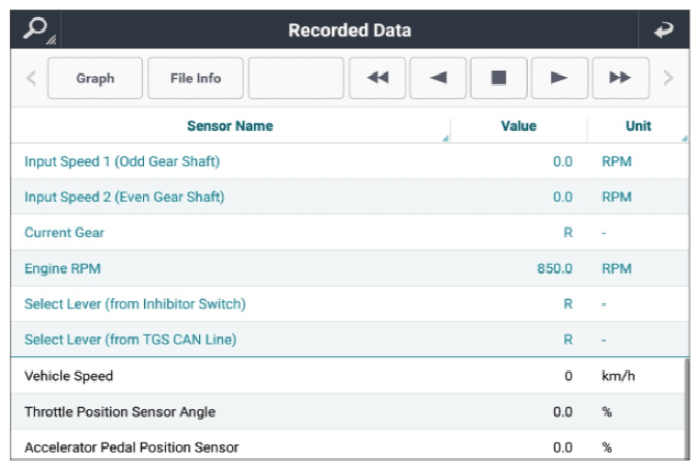

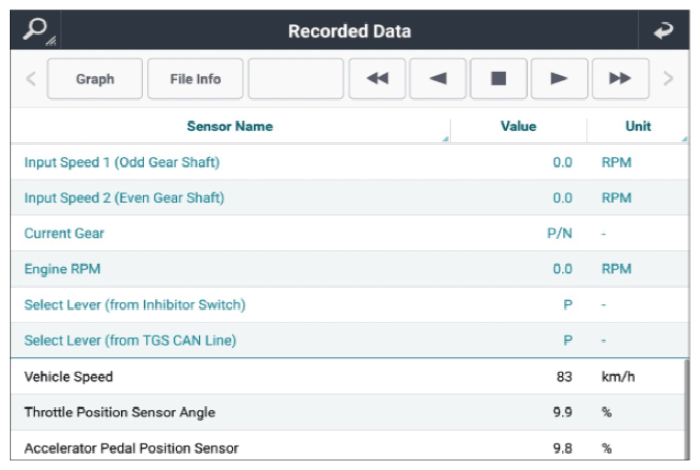

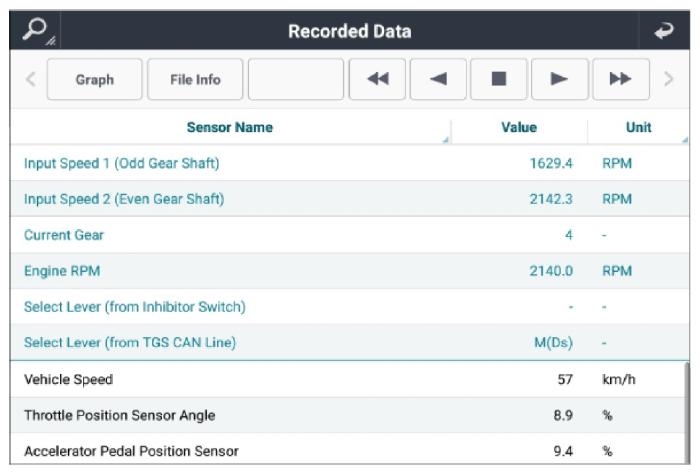

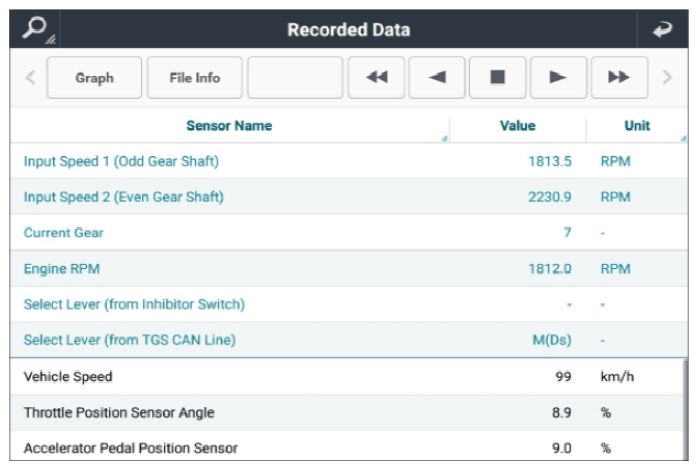

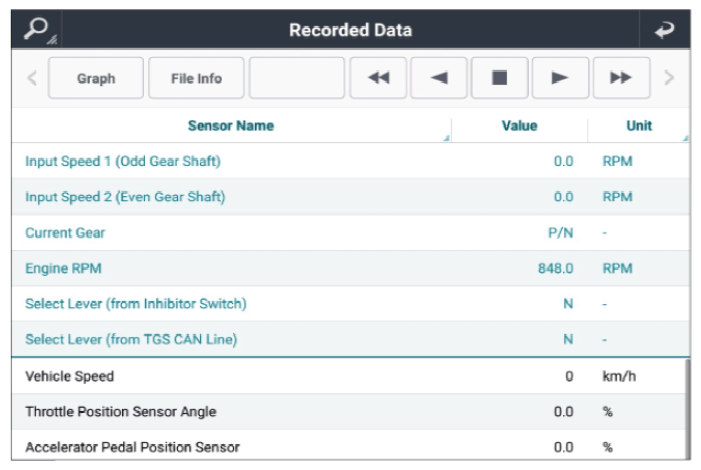

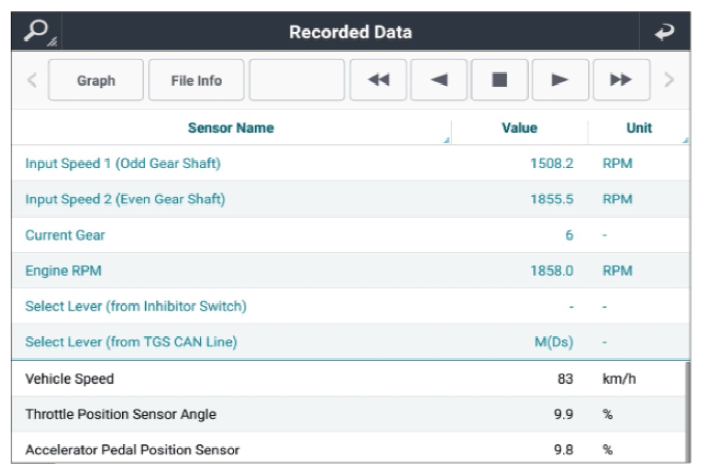

Specification : Refer to illustration below
