Home >> Hyundai >> 2021 >> Elantra SE >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs/Esp Diagnosis (2 Of 2) (Except HEV) >> DTC C1710-55: Assembly-Line Setup Is Still Active >> DTC Information And Inspection >> Assembly Check

Assembly Check

  1. Connect GDS to Data Link Connector (DLC).
  2. Turn ignition switch "ON".
  3. Select "S/W Management" menu of the GDS.

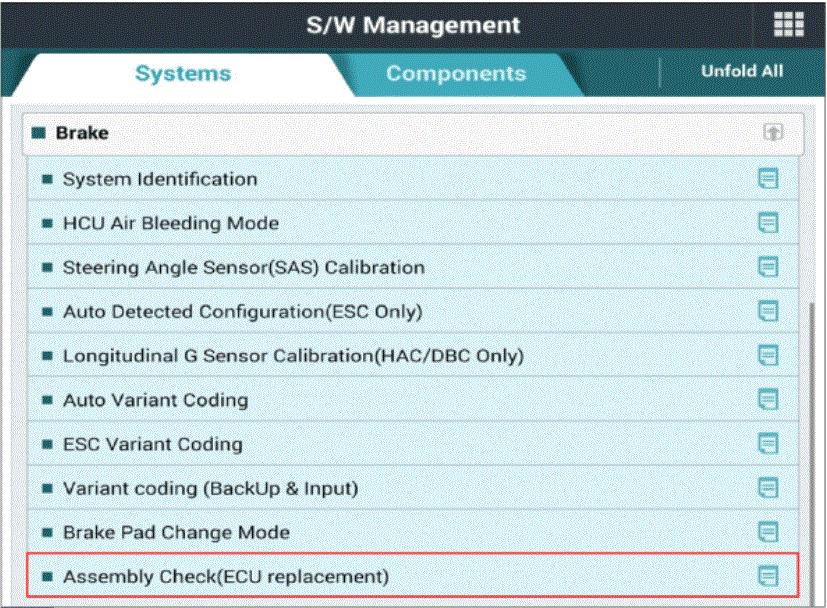

  4. Perform "Assembly Check (ECU replacement)" in "S/W Management". (Fig.1).
G14608540Courtesy of HYUNDAI MOTOR AMERICA

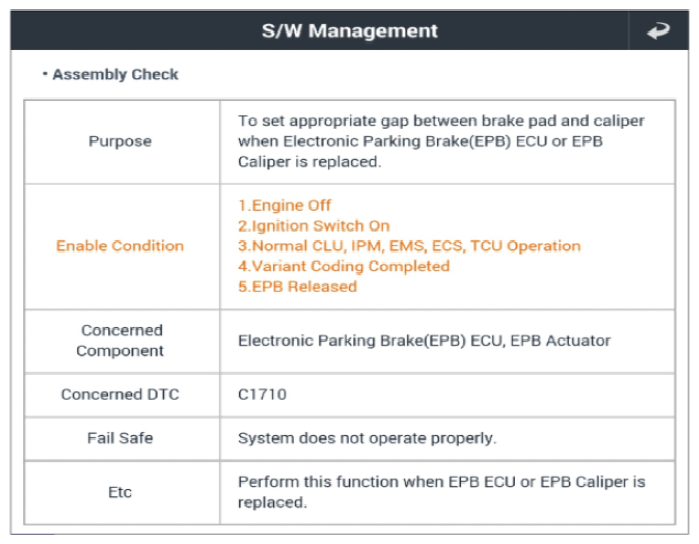

G14608541Courtesy of HYUNDAI MOTOR AMERICA
