Home >> Hyundai >> 2021 >> Elantra SE >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs/Esp Diagnosis (1 Of 2) (Except HEV) >> DTC C1626-04: Implausible Control >> Troubleshooting >> Diagnostic Flowchart

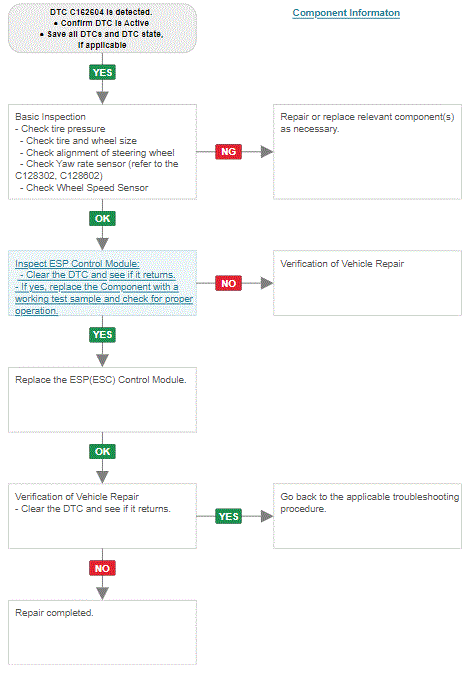

Diagnostic Flowchart

G14608525Courtesy of HYUNDAI MOTOR AMERICA
