GDS data Analysis
- Parking a car flat on the ground. Step on the brake, shift the gear lever to "P" position and keep the engine "ON" condition.
- Connect GDS to Data Link Connector (DLC).

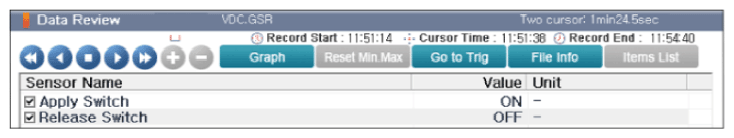

- Select "Current Data" mode and monitor "Apply Switch" & "Release Switch" parameter.
- Pull and push EPB switch once, and then let it be in neutral position and check EPB switch status from current data.

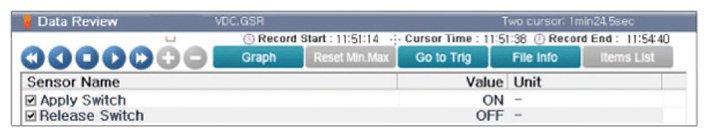

Specification : When the switch is activated, the data changes to 'ON', 'OFF'.
