Diagnostic Flowchart

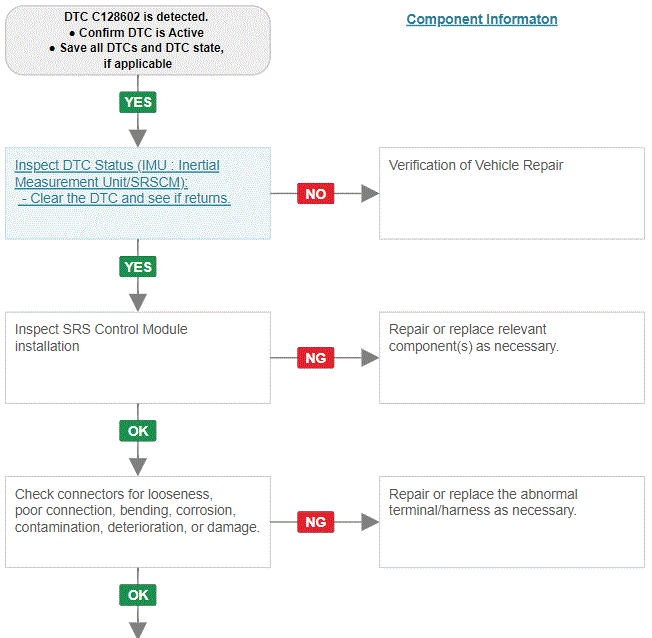

Fig 1: 1 Of 2
G14608492Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
G00617969Courtesy of HYUNDAI MOTOR AMERICA
