Diagnostic Flowchart

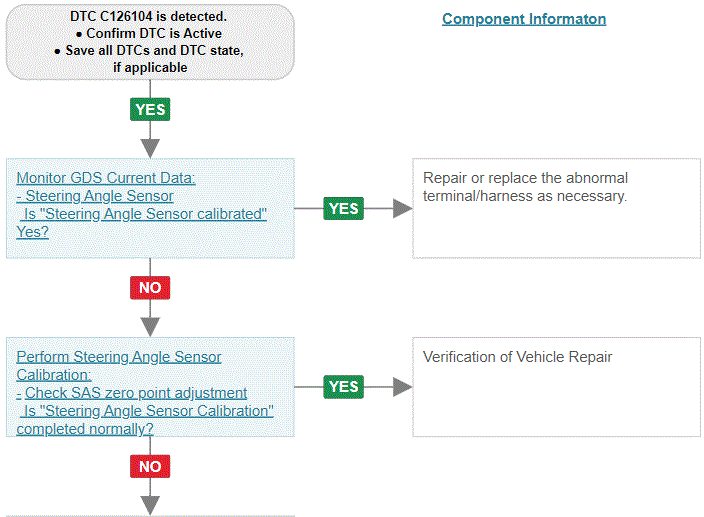

Fig 1: 1 Of 2
G14608487Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
G00617967Courtesy of HYUNDAI MOTOR AMERICA
