Fuel filler door

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

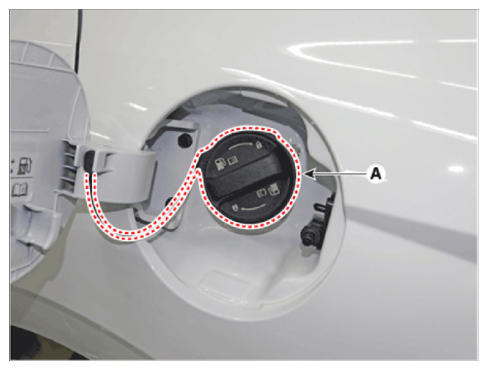

Open the fuel filler door (A).

Courtesy of HYUNDAI MOTOR AMERICA

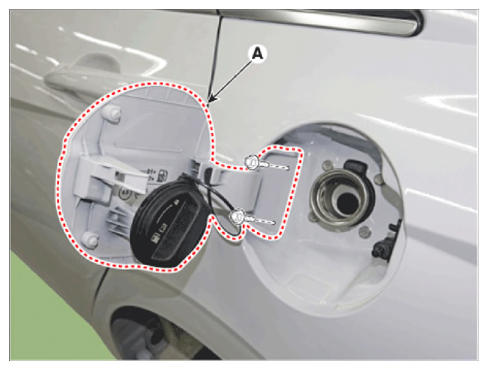

Loosen the mounting bolts and remove the fuel filler door (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the fuel filler door locks/unlocks and opens/closes properly.
