Fuel filler door catch
- Remove the front seat assembly [LH]. (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Remove the front door scuff trim [LH]. (Refer to Interior Trim - "FRONT DOOR SCUFF TRIM ")
- Remove the cowl side trim [LH]. (Refer to Interior Trim - "COWL SIDE TRIM ")
- Remove the floor console assembly. (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Separate the floor carpet to obtain space for removing the rear heating duct.

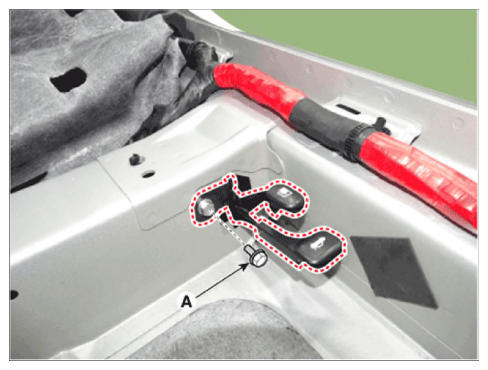

- Loosen the fuel filler door catch mounting bolt (A).
Tightening torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

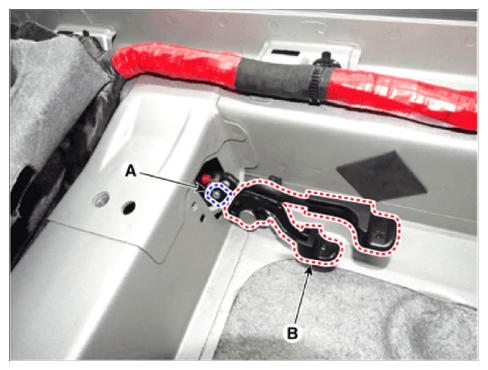

- Detach the cable (A) and remove the fuel filler door catch (B).
- To install, reverse the removal procedure.
Information
- Make sure the fuel filler door locks/unlocks and opens/closes properly.
