Fuel filler door cable

NOTE:
  • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Take care not to scratch the body surface.
  1. Remove the front seat assembly. (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
  2. Remove the rear seat assembly. (Refer to rear Seat - "REAR SEAT ASSEMBLY ")
  3. Remove the floor console assembly. (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
  4. Remove the center pillar lower trim. (Refer to Interior Trim - "CENTER PILLAR TRIM ")
  5. Remove the cowl side trim. (Refer to Interior Trim - "COWL SIDE TRIM ")
  6. Remove the luggage side trim. (Refer to Interior Trim - "COWL SIDE TRIM ")
  7. Remove the floor carpet. (Refer to "FLOOR CARPET ")

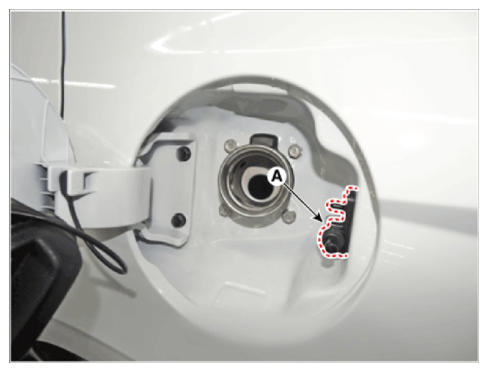

  8. Loosen the mounting bolt and remove the fuel filler door catch (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

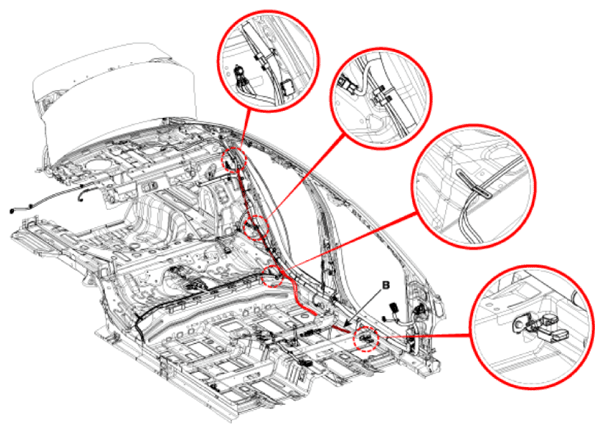

  9. Disconnect the fuel filler door bracket (A), remove the cable (B).
    G14598192Courtesy of HYUNDAI MOTOR AMERICA
    G14598193Courtesy of HYUNDAI MOTOR AMERICA
  10. To install, reverse the removal procedure.

    Information

    • Make sure the fuel filler door locks/unlocks and opens/closes properly.
