Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Loosen the front bumper upper mounting clips.

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the front bumper lower mounting clips.

Courtesy of HYUNDAI MOTOR AMERICA

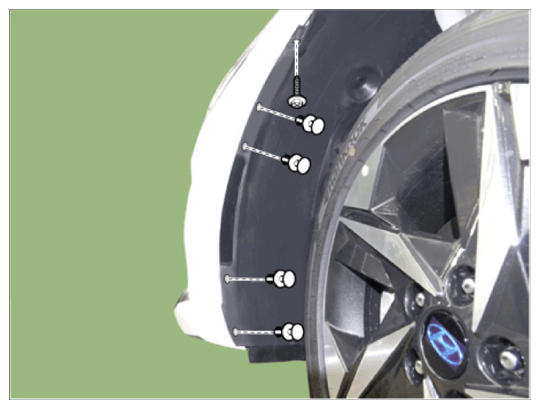

After loosening the pin-type retainers and screws on the side of front bumper (A), detach the side part of front bumper.
NOTE:
- Be careful not to damage the tabs on the side part of front bumper (A).
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front bumper main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front bumper assembly (A).
[General type]

Courtesy of HYUNDAI MOTOR AMERICA

[N Line]

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips (or pin - type retainers).
