Repair Procedures: Removal

  1. Remove the front bumper cover. (Refer to Body - "FRONT BUMPER COVER ")

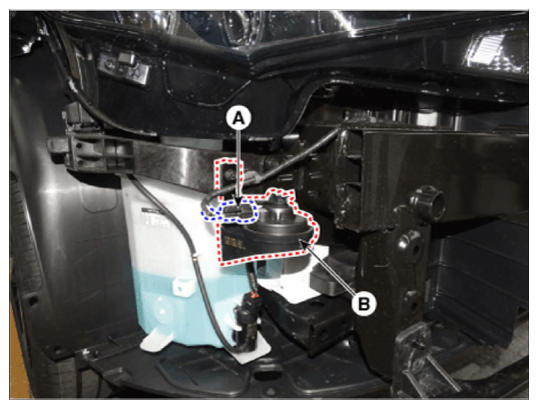

  2. Remove the bolts and disconnect the horn connectors (A), then remove the horn (B).

    [Low pitch]

    G14599894Courtesy of HYUNDAI MOTOR AMERICA

    [High pitch]

    G14599895Courtesy of HYUNDAI MOTOR AMERICA
