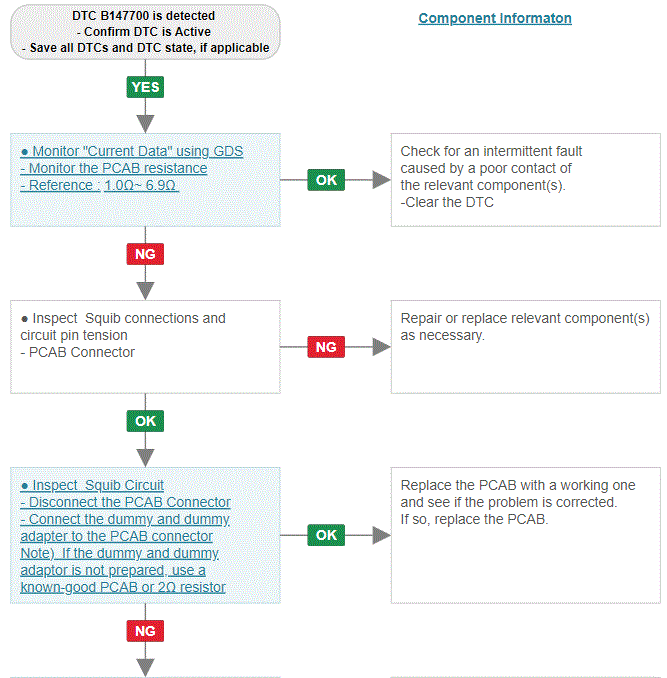

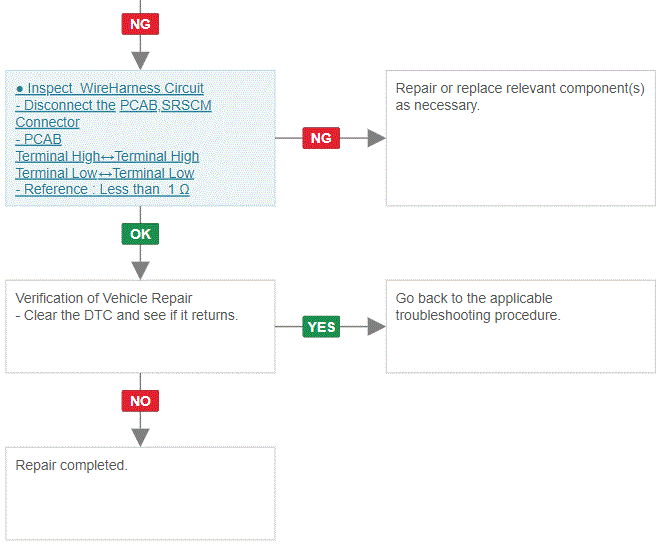

Home >> Hyundai >> 2021 >> Elantra N Line, Standard Trans >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (Except HEV) (2 Of 3) >> DTC B1477-00: Inflatable Curtain Airbag Passenger Resistance Too High >> Troubleshooting >> Diagnostic Flowchart
