Home >> Hyundai >> 2021 >> Elantra N Line, Standard Trans >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (Except HEV) (2 Of 3) >> DTC B1414-00: SIS (Side Impact Sensor) Front-Driver Wrong ID >> Troubleshooting >> Diagnostic Flowchart

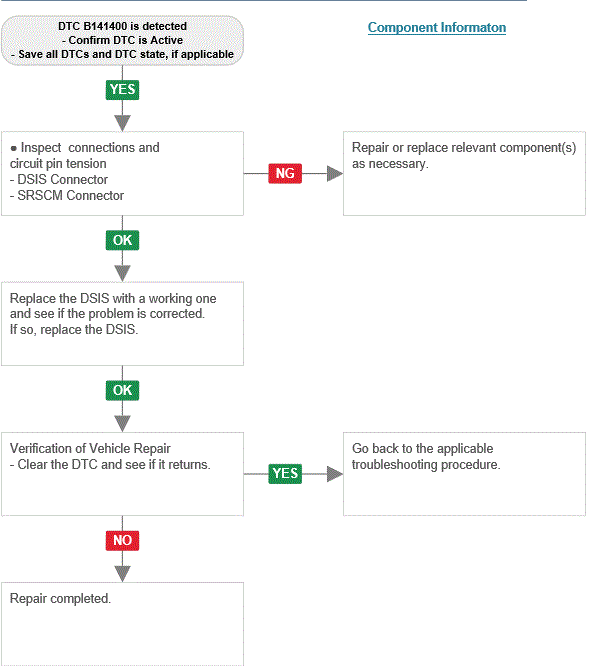

Diagnostic Flowchart

G14608160Courtesy of HYUNDAI MOTOR AMERICA
