Section 9 (Charging System - 2.0L (Except HEV))
>>
Schematic Diagrams
>>

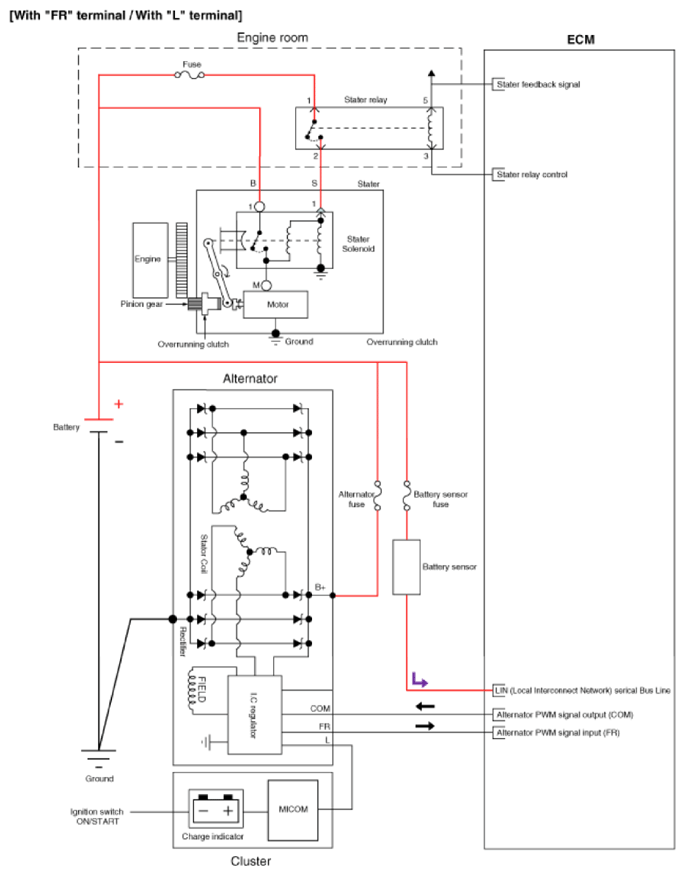

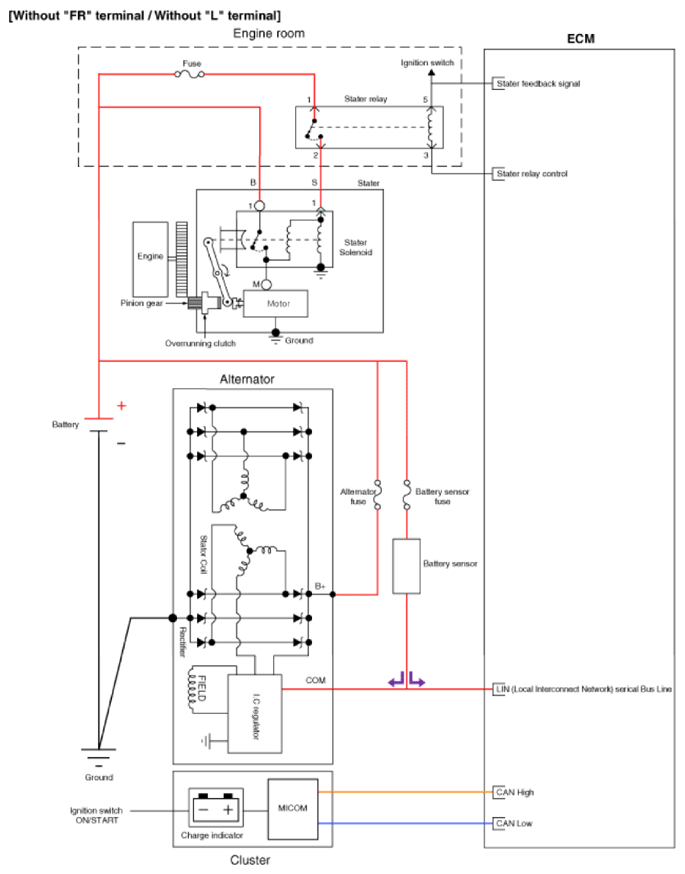

Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
