Battery Tray
WARNING: This page is about a different variant/trim than selected.
- Remove the battery.
- Remove the engine control module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

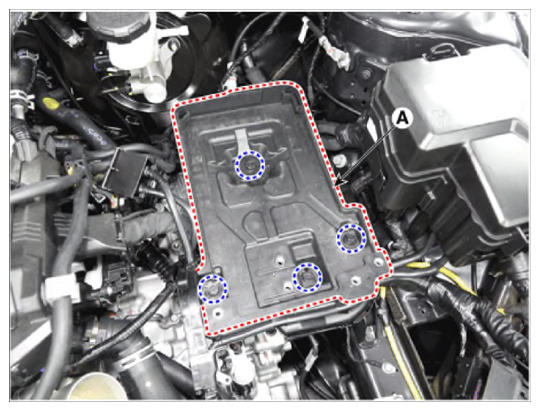

- Remove the battery tray (A).
Tightening torque:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft)
