Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.

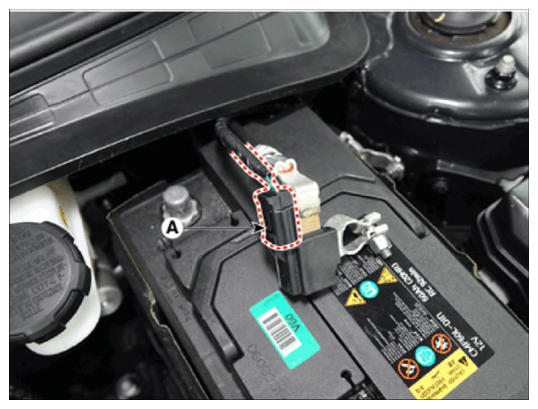

  2. Disconnect the battery sensor connector (A).
    G14607420Courtesy of HYUNDAI MOTOR AMERICA

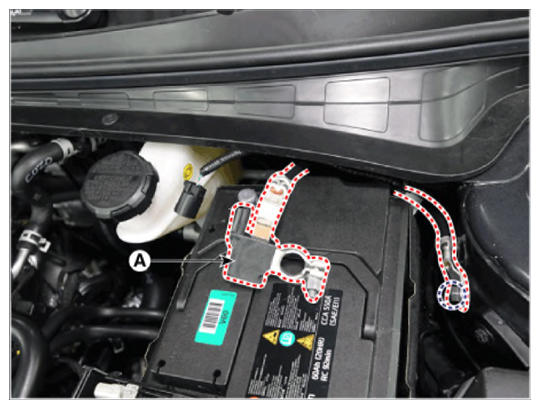

  3. Remove the battery sensor (A).

    Tightening torque:

    26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 Ib-ft)

    G14607421Courtesy of HYUNDAI MOTOR AMERICA
