Section 9 (Charging System - 2.0L (Except HEV)): Alternator: Specifications: Specification

WARNING: This page is about a different variant/trim than selected.
Item Specification
Rated voltage 13.5 V, 150 A
Speed in use 1, 000 - 18, 000 RPM
Pin 1 (LIN)
Pulley Type OAP pulley

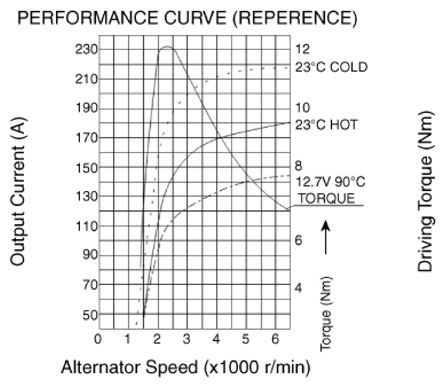

G14607336Courtesy of HYUNDAI MOTOR AMERICA
