Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

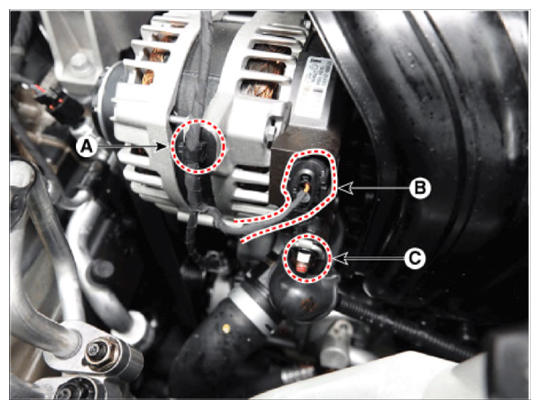

- Separate the wiring clip (A) and disconnect the alternator connector (B) and then remove the cable nut (C) from the alternator "B" terminal.
Tightening torque:
18.6 - 24.5 N.m (1.9 - 2.5 kgf.m, 13.7 - 18.1 Ib-ft)

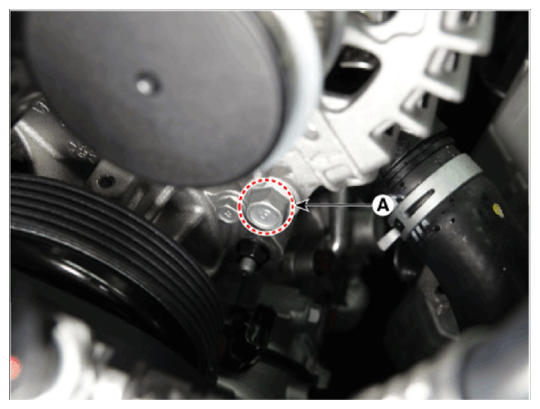

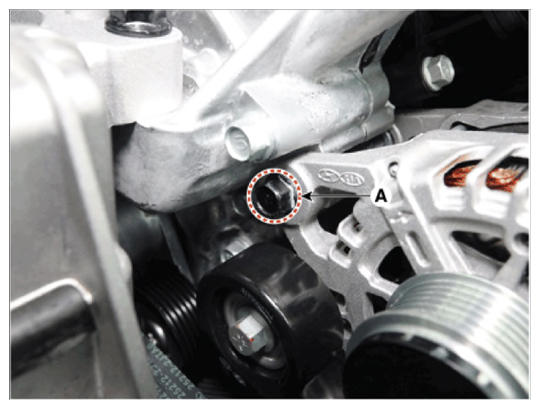

- Remove the alternator mounting bolts (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 Ib-ft)

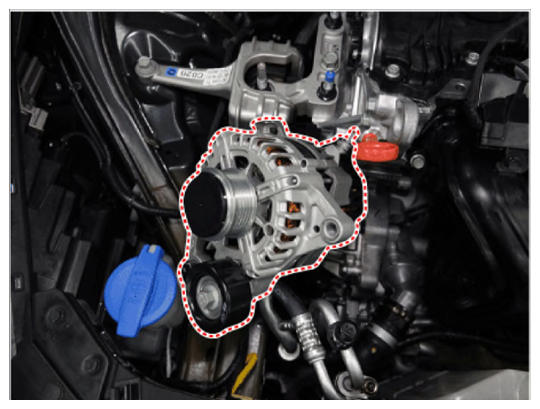

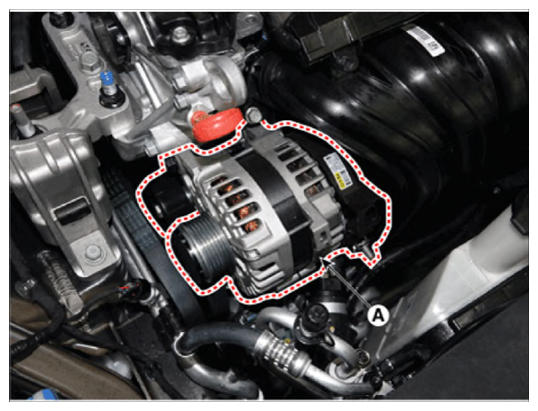

- Remove the alternator (A).
